multiplicities on relations

r: A m -> n B

The m and n are multiplicities on relations. It could be either one of the values, set, some, oneand lone.

• Multiplicities are just a shorthand, and can be replaced by standard constraints.

  Reference source (1)

  1. Software Abstractions

• If not specified, the multiplicities are assumed to be set.

  Reference source (1)

  1. Alloy Documentation

  Which means, if not specified, like r: A -> B, there is no constraints.

• injective, A lone -> B

  entire, A -> some B

  simple, A -> lone B

  surjective, A some -> B

  Reference source (1)

  1. Formal Software Design with Alloy 6

Example 1: sig S{r: A -> one B}

standard constraints

sig A, B {}
sig S {
  r: A -> one B
  // synonymous with:
  // r: A set -> one B
}

assert standard_constraints{
  all s: S, a: A | one a.(s.r)

  // synonymous with:
  all s: S, a: A | { one b: B | s->a->b in r }

  // implications:
  ( all s: S, a: A | one a.(s.r) ) => (all s: S | {no a: A | no a.(s.r)}  )
}

check standard_constraints

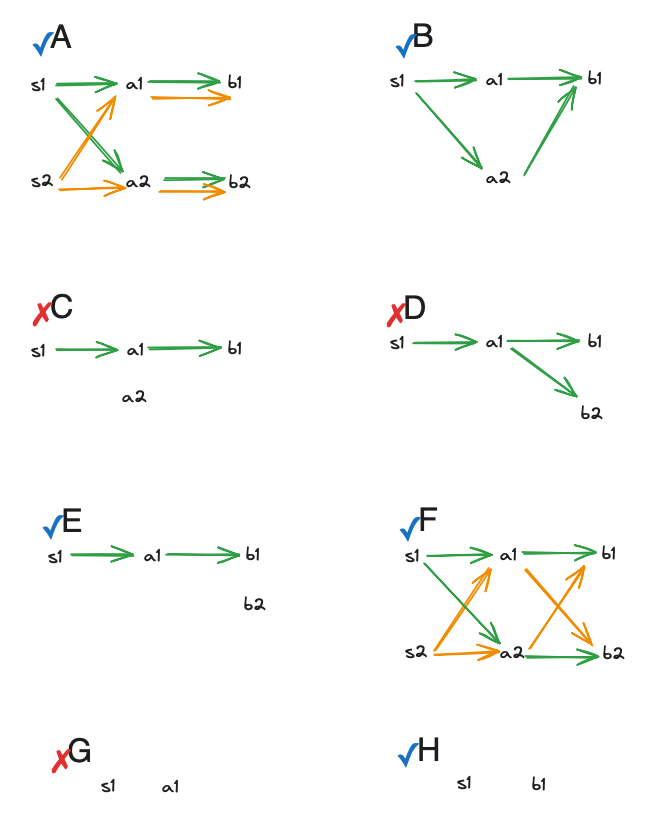

potential instances

• A

sig A, B {}
sig S { r: A -> one B }

pred potential_instances_A{
  all a: A | #(a.(S.r)) = 1
  some disj s1, s2: S, a: A | #(a.(s1.r)) = 1 and #(a.(s2.r)) = 1
}

run potential_instances_A for exactly 2 A, exactly 2 B, exactly 2 S

• B

sig A, B {}
sig S { r: A -> one B }

pred potential_instances_B{
  some s: S, b: B | #(s.r.b) > 1
}

run potential_instances_B for 1 but exactly 2 A

• C

No instance found

sig A, B {}
sig S { r: A -> one B }

pred potential_instances_C{
  some s: S, a: A | #(a.(s.r)) = 0
}

run potential_instances_C for 1 but exactly 2 A

• D

No instance found

sig A, B {}
sig S { r: A -> one B }

pred potential_instances_D {
  some s: S, a:  A | #(a.(s.r)) > 1
  // synonymous with:
  some s: S, a: A | {
    some disj b1, b2:  B | {
      (s->a->b1 in r) and (s->a->b2 in r)
    }
  }
}

run potential_instances_D for 1 but exactly 2 B

• E

sig A, B {}
sig S { r: A -> one B }

pred potential_instances_E {
  some s: S, a: A, b: B | #( a.(s.r) & b) = 0
}

run potential_instances_E for 1 but exactly 2 B

• F

sig A, B {}
sig S { r: A -> one B }

pred potential_instances_F {
  some disj a1, a2: A, b: B | (some r.b.a1) and (some r.b.a2)
}

run potential_instances_F for exactly 2 A, exactly 2 B, exactly 2 S

• G

No instance found

sig A, B {}
sig S { r: A -> one B }

pred potential_instances_G {
  some s: S, a: A | no a.(s.r)
}

run potential_instances_G for 1

• H

sig A, B {}
sig S { r: A -> one B }

pred potential_instances_H {
  some s: S, b: B | no s.r.b
}

run potential_instances_H for 1

Example 2: sig S{r: A lone -> B}

standard constraints

sig A, B {}
sig S {
  r: A lone -> B
 // synonymous with:
 // r: A lone -> set B
}

assert standard_constraints{
  all s: S, b: B | lone (s.r.b)

  // synonymous with:
  all s: S, b: B | { lone a: A |   s->a->b in r }

  // implications:
  ( all s: S, b: B | lone (s.r.b) ) => (all s: S, b: B |  #(s.r.b) <= 1  )
}

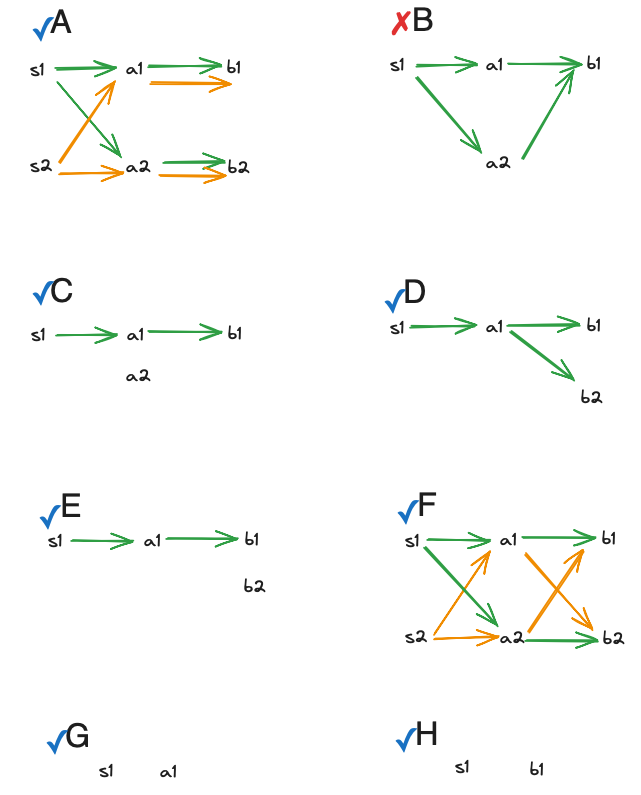

potential instances

• A

sig A, B {}
sig S { r: A lone -> B }

pred potential_instances_A{
  all a: A | #(a.(S.r)) = 1
  some disj s1, s2: S, a: A | #(a.(s1.r)) = 1 and #(a.(s2.r)) = 1
}

run potential_instances_A for exactly 2 A, exactly 2 B, exactly 2 S

• B

No instance found

sig A, B {}
sig S { r: A lone -> B }

pred potential_instances_B{
  some s: S, b: B | #(s.r.b) > 1
}

run potential_instances_B for 1 but exactly 2 A

• C

sig A, B {}
sig S { r: A lone -> B }

pred potential_instances_C{
  some s: S, a: A | #(a.(s.r)) = 0
}

run potential_instances_C for 1 but exactly 2 A

• D

sig A, B {}
sig S { r: A lone -> B }

pred potential_instances_D {
  some s: S, a:  A | #(a.(s.r)) > 1
  // synonymous with:
  some s: S, a: A | {
    some disj b1, b2:  B | {
      (s->a->b1 in r) and (s->a->b2 in r)
    }
  }
}

run potential_instances_D for 1 but exactly 2 B

• E

sig A, B {}
sig S { r: A lone -> B }

pred potential_instances_E {
  some s: S, a: A, b: B | #( a.(s.r) & b) = 0
}

run potential_instances_E for 1 but exactly 2 B

• F

sig A, B {}
sig S { r: A lone -> B }

pred potential_instances_F {
  some disj a1, a2: A, b: B | (some r.b.a1) and (some r.b.a2)
}

run potential_instances_F for exactly 2 A, exactly 2 B, exactly 2 S

• G

sig A, B {}
sig S { r: A lone -> B }

pred potential_instances_G {
  some s: S, a: A | no a.(s.r)
}

run potential_instances_G for 1

• H

sig A, B {}
sig S { r: A lone -> B }

pred potential_instances_H {
  some s: S, b: B | no s.r.b
}

run potential_instances_H for 1
